Historically, various fiber types are formed into various weights of filtration media through a traditional needle loom which has met market needs with a specific balance of properties. However, today’s utilities and industrial users are demanding higher performance filtration; filters that deliver improved collection efficiency with lower operating costs in a filtration system.
Hydro-Maxx® filter media, available only from National Media Filter, combines the benefits of needle loom fiber entangling with revolutionary hydro-entangling technology to deliver industry-leading dust collection performance. The phenomena of entangling fibers with high-pressure water jets create a unique balance of lower mean pore size in a mass-efficient structure. Hydro-Maxx® represents a new paradigm in filtration media by delivering a product with dramatically improved filtration efficiency, an inherent ability to promote surface dust collection, lower pressure drop over time, and reduction in pulse cycle times.
Available fibers from Hydro-Maxx® Felt
- Polyester
- PPS (RYTON)
- P-84
- Hormopolymer Acrylic
- Aramid (Nomex)
Filtration Performance
Filtration performance characteristics are best demonstrated through the VDI test, a test apparatus specifically designed to characterize filter media performance in a baghouse application. Using the VDI test to compare a typical 16 oz/yd2 needlefelt from the market with a lighter weight 14 oz/yd2 Hydro-Maxx® filtration felt, the results show dramatic improvement in filtration performance as measured by clean gas concentration (mg/m3).

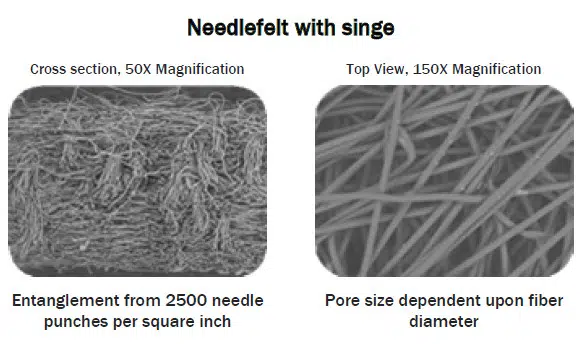

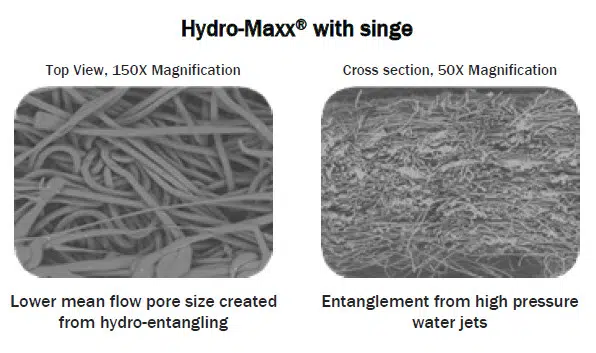

Fundamental gains in filtration efficiency are a result of fiber entangling technology. The impact of hydro-entangling results in lower mean flow pore size and improved consistency versus traditional needlefelt. The improved fiber entangling can be observed through a comparison of SEM images, as shown below.
Surface Dust Collection

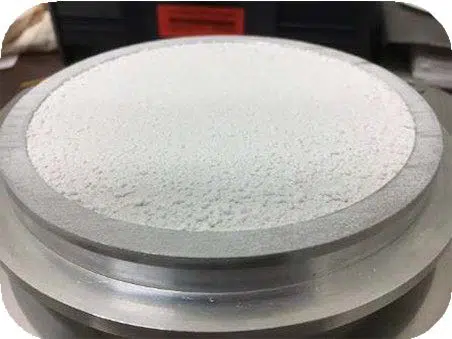

Technically savvy end-users know that filter media which promote surface dust collection deliver improved baghouse performance through more effective cleaning from bag pulses. Additionally, in applications where gas stream reagents and sorbents are used, surface dust collection helps create a platform where the chemistry can be allowed to perform most effectively. The images below were taken after execution of the VDI test, where standardized test dust becomes embedded in the needle felt, resisting the effect of the bag pulses.
Traditional Needlefelt
Hydro-Maxx® Filtration Felt
Clean-ability
The Hydro-Maxx® media promotes surface dust collection in a way that responds more effectively to bag pulses, leaving the surface much cleaner and ready to perform during the next cycle. VDI data from a series of tests is characterized with the model shown at the right. When comparing pressure drop performance over time of membrane, needlefelt, and Hydro-Maxx® media, the Hydro-Maxx® media demonstrates improved ΔP over time delivering lower operating costs to users.
Hydro-Maxx® is available in all fiber types commonly used in needlefelt including PPS, PET, and Aramid.
